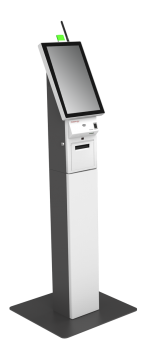

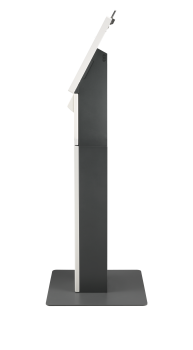

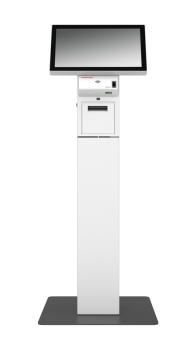

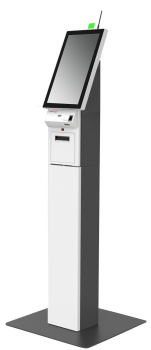

Mercury EK-1632

Name: Mercury EK-1632
Brand: Posiflex
SKU: C141
Availability: OutOfStock

Cu un design elegant și subțire, seria Mercury EK-1600 este un chioșc de afișare de 15,6 inchi cu o amprentă compactă, potrivit pentru magazinele de vânzare cu amănuntul.

Cu o varietate de periferice pentru tranzacții cu autoservire, seria Mercury EK-1600 servește ca o extensie a angajații.

Poate face față sarcinilor banale, permițând în același timp angajatului să se concentreze pe furnizarea de servicii mai bune pentru clienți.

Specification
Processor	Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache
System Memory	DDR4 SO-DIMM slot x 1, max. 16 GB
Storage Device	M.2 SSD [SATA Signal Only] x 1
Intel vPro Support	N/A
TPM Support	TPM 2.0
Power Supply	12V/60W x 1 + 24V/60W x 1
OS Support	Windows 10 IoT/ Windows 11 IoT GAC
Serial Port	3, DB9 x 1 + RJ50 x 2, 5V/12V support on all COM ports
Standard USB Port	8, USB 3.0 x 2 + USB 2.0 x 6
OTG USB	N/A
Display Port	HDMI x 1
LAN Port	10/100/1000 Mb x 2
Audio	Internal 3W speaker x 2
Internal Expansion Slot	M.2 x 1

Display & Touch
LCD	15.6"
Resolution	1920 x 1080
Touch	True-flat PCAP touch with multi-touch support

Physical Dimension
Dimension (W x D x H in mm)	Countertop version (Portrait): 395 x 395 x 646 Floorstanding version (Portrait): 500 x 500 x 1420 Countertop version (Landscape): 395 x 395 x 513 Floorstanding version (Landscape): 500 x 500 x 1286
Weight (N. W. in kg)	Countertop version: 18.2 Floorstanding version: 30.4

Environmental
Operating Condition	0°C - 40°C, 20%RH - 90%RH
Storage Condition	-20°C - 70°C, 10%RH - 90%RH

Standard Components
Status Indicator	-
Proximity Sensor	1. Range from 45cm ~ 80cm (for dark color object) 2. Range from 45cm ~ 150cm (for light color object)
Camera	1MP wide angle camera
Printer	3" thermal printer w/auto cutter, 200 mm/sec (max.)

Optional Components
Status Indicator	RGB Color LED Indicator (for portrait mode only)
WiFi	USB dongle (cannot coexist with 4G/LTE)
Scanner	2D barcode scanner
EMV Payment Device Bracket Support*	Custom bracket support for various EMV payment devices (Posiflex does not sell the EMV payment devices, but can provide bracket support with an additional charge)
MSR	N/A
Fingerprint Sensor	Optical type
NFC/RFID Reader	Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols - tag read/write (ISO/IEC-18092)
4G / LTE Communication	Support selected bands & countries with full SIM slot (mini-PCIe module) by request
PowerGuard	N/A
Optional Items for Pedestal PT-200BC	N/A
Optional Item for Pedestal PT-300	N/A
Default Items for Pedestal PT-500	N/A
