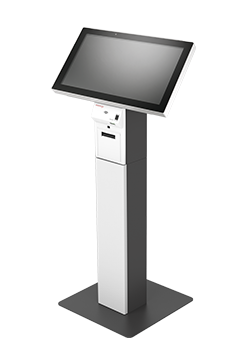

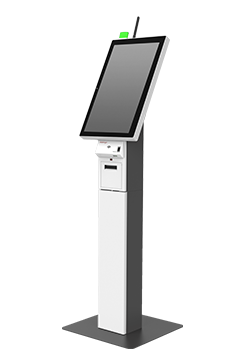

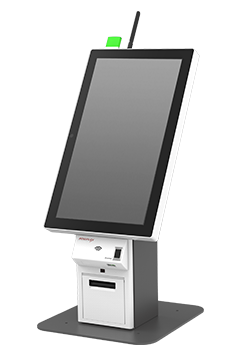

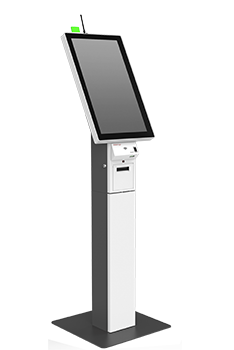

Mercury EK-2450

Name: Mercury EK-2450
Brand: Posiflex
SKU: C132
Availability: OutOfStock

Atrageți clienții cu ecranele PCAP geniale de 23,8 inchi ale seriei Mercury EK-2400 și designul subțire care vă ajută să iasă în evidență.

Cu puterea designului modular care se poate integra cu o gamă largă de periferice, seria Mercury EK-2400 poate crea până- vinde oportunități și permite personalului valoros să fie mutat în alte domenii cheie, făcând o călătorie excelentă a clienților la doar o atingere

Specification
Processor	Intel KabyLake-U i3-7100U; Intel KabyLake-U i5-7300U
System Memory	DDR4 SO-DIMM slot x 1, max. 16 GB
Storage Device	M.2 SSD [SATA Signal Only] x 1
Intel vPro Support	Core i3: N/A Core i5: Optional
TPM Support	Optional
Power Supply	12V/60W x 1 + 24V/60W x 1
OS Support	Windows 10 IoT 64 bit
Serial Port	3, DB9 x 1 + RJ50 x 2, 5V/12V support on all COM ports
Standard USB Port	8, USB 3.0 x 2 + USB 2.0 x 6
OTG USB	N/A
Display Port	HDMI x 1
LAN Port	10/100/1000 Mb x 2
Audio	Internal 3W speaker x 2
Internal Expansion Slot	M.2 x 1

Display & Touch
LCD	23.8"
Resolution	1920 x 1080
Touch	True-flat PCAP touch with multi-touch support

Physical Dimension
Dimension (W x D x H in mm)	Countertop version (Portrait): 395 x 395 x 802 Floorstanding version (Portrait): 500 x 500 x 1576 Countertop version (Landscape): 575 x 395 x 601 Floorstanding version (Landscape): 575 x 500 x 1377
Weight (N. W. in kg)	Countertop version: 23.2 Floorstanding version: 35.4

Environmental
Operating Condition	0°C - 40°C, 20%RH - 90%RH
Storage Condition	-20°C - 70°C, 10%RH - 90%RH

Standard Components
Status Indicator	-
Proximity Sensor	1. Range from 45cm ~ 80cm (for dark color object) 2. Range from 45cm ~ 150cm (for light color object)
Camera	1MP wide angle camera
Printer	3" thermal printer w/auto cutter, 200 mm/sec (max.)

Optional Components
Status Indicator	RGB Color LED Indicator (for portrait mode only)
WiFi	USB dongle (cannot coexist with 4G/LTE)
Scanner	2D barcode scanner
EMV Payment Device Bracket Support*	Custom bracket support for various EMV payment devices (Posiflex does not sell the EMV payment devices, but can provide bracket support with an additional charge)
MSR	N/A
Fingerprint Sensor	Optical type
NFC/RFID Reader	Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols - tag read/write (ISO/IEC-18092)
4G / LTE Communication	Support selected bands & countries with full SIM slot (mini-PCIe module) by request
PowerGuard	N/A
Optional Items for Pedestal PT-200BC	N/A
Optional Item for Pedestal PT-300	N/A
Default Items for Pedestal PT-500	N/A
