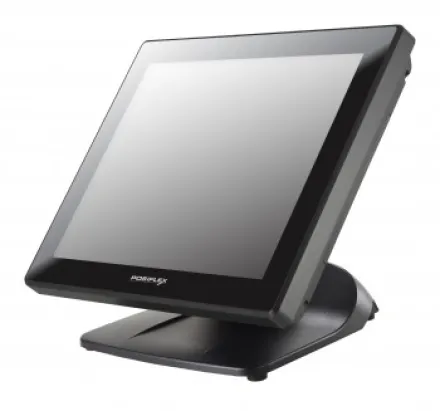

POS ALL IN ONE POSIFLEX PS 3615-Q

POS ALL IN ONE POSIFLEX PS 3615-Q

System Configuration
Processor	Intel Apollo Lake J3455
System Memory	DDR3L SO-DIMM x 1, max. 8GB
Storage Device	M.2 connector (SATA Signal Only) x 1
RAID Function	N/A
Intel vPro Support	N/A
TPM Support	N/A
Power Supply	12V/40W
OS Support	Windows 10 IoT
Display & Touch
LCD	15″ TFT LCD
Resolution	1024 x 768
Touch	True-flat PCAP touch with multi-touch support (IP65 on front panel)
I/O Expansion
Serial Port	4, DB9 x 3 + RJ50 x 1, 5V/12V support on all COM ports
Parallel Port	1, via optional conversion cable through service window
Standard USB Port	5, USB 3.0 x 2+ USB 2.0 x 2 (on I/O plate) + USB 2.0 x 1 (on the top)
PoweredUSB Port	Optional 24V x 1 + 12V x 3 via GEN8 base
OTG USB	N/A
LAN Port	10/100/1000 Mb x 1
Display Port	VGA x 1, 12V support for Posiflex monitors
CR Port	1, control 2 CR via optional Y-cable, supporting 24V cash drawer
PS/2 Port	1, via optional conversion cable through service window
UPS Port	N/A
Audio	Buzzer x 1; Optional internal 2W speaker x 1
Expansion Slot	M.2 slot x 1
Physical Dimension
Dimension (W x D x H in mm)	372 x 252.7 x 320
Weight (N. W. in kg)	5.86
Environmental
Operating Condition	0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)
Storage Condition	-20°C – 70°C, 10%RH – 90%RH
Built-in Options
WiFi	M.2 WiFi/BT module
Camera	N/A
MSR	N/A
AG Glass	N/A
Attachment Options
POS Monitor	Non-touch TFT USB LCD: 7″/9.7″
Line Display	2 x 20 rear-mount VFD customer line display;
	2 x 20 rear-mount LCD customer line display;
	7″ color LCD graphical line display
External UPS Pack For RT Series	N/A
Attachment	MSR; iButton; RFID; Fingerprint Sensor; Keypad

Cere Oferta

Cod Produs: C59 Ai nevoie de ajutor? 0264-414355 / 0751017741

Adauga la Favorite

Descriere
Review-uri (0)

Realizată având în vedere funcționalitatea și flexibilitatea, seria PS-3615 dispune de un ecran tactil PCAP lat de 15 inchi, tehnologie fără ventilator ,răspunde atât așteptărilor retailerilor, cât și ale consumatorilor – totul într-un terminal accesibil, dar atractiv și bogat în funcții.
