JIVA HS-6612W

JIVA HS-6612W

Name: JIVA HS-6612W
Brand: Posiflex
SKU: C159
Availability: OutOfStock

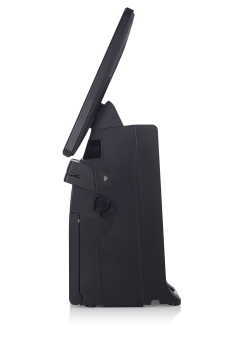

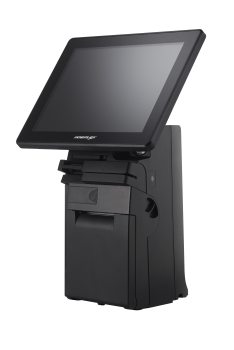

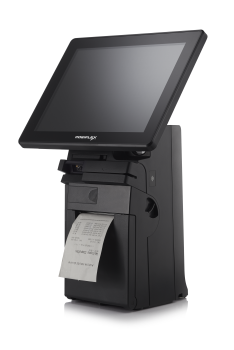

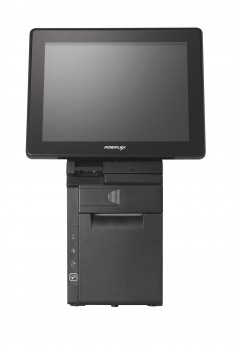

HS-6612W este noul terminal POS all-in-one high-end care rulează pe procesor Intel până la Whisky Lake Core i5.

Are inovație și funcționalitate într-un design compact cu un aspect elegant, care este ideal pentru afacerile de vânzare cu amănuntul în care spațiul este limitat.

Cere Oferta

Cod Produs: C159 Ai nevoie de ajutor? 0264-414355 / 0751017741

Adauga la Favorite

Descriere
Review-uri (0)

System Configuration
Processor	Intel Whisky Lake Core i3-8145UE, up to 3.90 GHz, 4.0M Cache; Intel Whisky Lake Core i5-8365UE, up to 4.10 GHz, 6.0M Cache
System Memory	DDR4 SO-DIMM slot x 2, max 32 GB
Storage Device	M.2 connector [supporting AHCI mode] x 2
TPM	TPM 2.0
Power Supply	24V/100W
Built-in Printer	3” detachable printer w/auto cutter, 250 mm/sec (max.)
Built-in WiFi	N/A
OS support	Windows 10 IoT 64 bit

Display & Touch
LCD	12" TFT LCD
Resolution	1024 x 768
Touch	True-flat PCAP touch with multi-touch support

I/O Expansion
Serial Port	3, DB9 x 2 + RJ50 x 1, 5V/12V support on all COM ports
Parallel Port	Yes
Standard USB Port	4, USB 3.0 x 4
OTG USB	N/A
LAN Port	10/100/1000 Mb x 1
Display Port	VGA x 1, 12V support for Posiflex monitors
CR Port	1, control 2 CR via optional Y-cable (printer driven), supporting 24V cash drawer
PS/2 Port	Yes
Audio	Line-Out/MIC-In Combo
Expansion Slot	M.2 slot x 1

Physical Dimension
Dimension (W x D x H in mm)	297 x 198 x 473
Weight (N. W. in kg)	5.5

Environmental
Operating Condition	0°C - 40°C, 20%RH - 90%RH
Storage Condition	-20°C - 70°C, 10%RH - 90%RH

Built-in Options
WiFi	M.2 WiFi/BT module
MSR	3 tracks ISO or JISII (HID/VCOM selection)
Fingerprint Sensor	Optical type
RFID Reader	Support MIFARE Ultralight and Classic 1K card (HID/VCOM Selectable)
Scanner	2D barcode scanner
iButton	Yes (cannot coexist with Fingerprint Sensor)
4G / LTE Communication	Single SIM slot, selected band support

Attachment Options
POS Monitor	Non-touch TFT LCD: 7"/9.7"/12.1"; PCAP touch TFT LCD: 9.7"
Line Display	2 x 20 rear-mount VFD customer line display; 2 x 20 rear-mount LCD customer line display; 7" color LCD graphical line display
