JIVA HS-3612W

JIVA HS-3612W

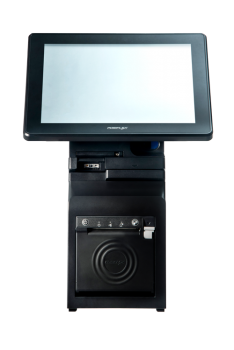

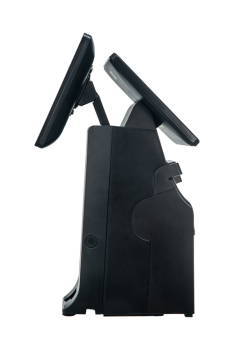

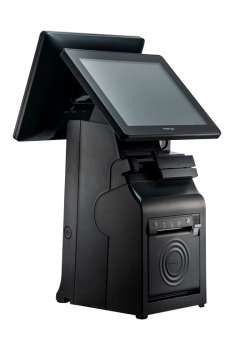

Name: JIVA HS-3612W
Brand: Posiflex
SKU: C150
Availability: OutOfStock

HS-3612W este o generație complet nouă de terminale POS all-in-one de înaltă calitate, care oferă inovație și funcționalități într-un design compact cu aspect elegant.

Este perfectă pentru afacerile de vânzare cu amănuntul în care spațiul este limitat.

Cere Oferta

Cod Produs: C150 Ai nevoie de ajutor? 0264-414355 / 0751017741

Adauga la Favorite

Descriere
Review-uri (0)

System Configuration
Processor	Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache
System Memory	DDR4 SO-DIMM x 2, max. 32GB
Storage Device	M.2 connector [supporting AHCI mode] x 2
TPM	Yes, TPM 2.0
Power Supply	24V/100W
Built-in Printer	PP-7900, 3" speedy thermal printer, 250 mm/sec (max.)
Built-in WiFi	N/A
OS support	Windows 10 IoT LTSC Windows 11 IoT GAC

Display & Touch
LCD	12.1" TFT LCD
Resolution	1024 x 768
Touch	True-flat PCAP touch with multi-touch support

I/O Expansion
Serial Port	3, DB9 x 2 + RJ50 x 1, 5V/12V support on all COM ports
Parallel Port	Yes
Standard USB Port	4, USB 3.0 x 1+ USB 2.0 x 3
OTG USB	N/A
LAN Port	10/100/1000 Mb x 1
Display Port	VGA x 1, 12V support for Posiflex monitors
CR Port	1, control 2 CR via optional Y-cable (printer driven), supporting 24V cash drawer
PS/2 Port	Yes
Audio	Line-out / Mic-in combo x 1
Expansion Slot	M.2 slot x 1

Physical Dimension
Dimension (W x D x H in mm)	297 x 210 x 476
Weight (N. W. in kg)	5.3

Environmental
Operating Condition	0°C - 40°C, 20%RH - 90%RH
Storage Condition	-20°C - 70°C, 10%RH - 90%RH

Built-in Options
WiFi	M.2 WiFi/BT module
MSR	3 tracks ISO or JISII (HID/VCOM selection)
Fingerprint Sensor	Optical type
RFID Reader	Support MIFARE Ultralight and Classic 1K card (HID/VCOM Selectable)
Scanner	2D barcode scanner
iButton	Yes (cannot coexist with Fingerprint Sensor)
4G / LTE Communication	Single SIM slot, selected band support

Attachment Options
POS Monitor	Non-touch TFT LCD: 7"/9.7"/12.1"; PCAP touch TFT LCD: 9.7"
Line Display	2 x 20 rear-mount VFD customer line display; 2 x 20 rear-mount LCD customer line display;
