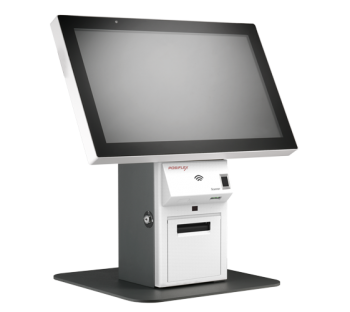

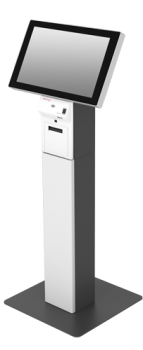

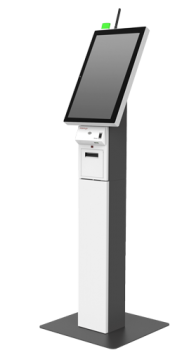

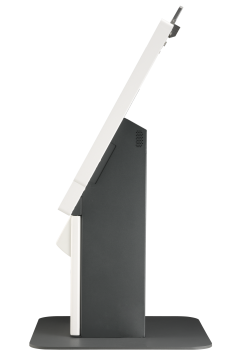

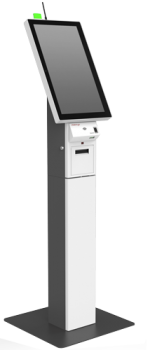

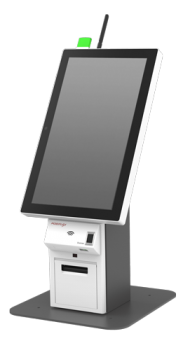

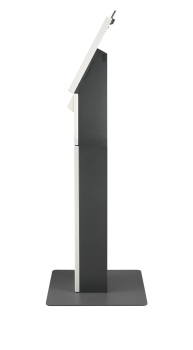

Mercury EK-2130

Name: Mercury EK-2130
Brand: Posiflex
SKU: C145
Availability: OutOfStock

Seria Mercury EK-2100 este un chioșc de afișare de 21,5 inchi cu un design elegant și funcțional care se va integra perfect în orice mediu de vânzare cu amănuntul.

Seria Mercury EK-2100 poate servi ca un chioșc de comandă/codă de așteptare/chioșc de informații pentru a interacționa cu clienții și simultan ajuta comercianții cu amănuntul să genereze mai multă cerere și afaceri.

Specification
Processor	Intel Bay Trail J1900 Quad Core, up to 2.42 GHz, 2M Cache
System Memory	DDR3L SO-DIMM slot x 1, max. 8 GB
Storage Device	M.2 SSD [SATA Signal Only] x 1
Intel vPro Support	N/A
TPM Support	Optional
Power Supply	12V/60W x 1 + 24V/60W x 1
OS Support	Windows 7/POSReady 7/Windows Embedded 8.1 Industry/Windows 10 IoT
Serial Port	3, DB9 x 1 + RJ50 x 2, 5V/12V support on all COM ports
Standard USB Port	8, USB 3.0 x 1+ USB 2.0 x 7
OTG USB	N/A
Display Port	HDMI x 1
LAN Port	10/100/1000 Mb x 2
Audio	Internal 3W speaker x 2
Internal Expansion Slot	M.2 x 1

Display & Touch
LCD	21.5"
Resolution	1920 x 1080
Touch	True-flat PCAP touch with multi-touch support

Physical Dimension
Dimension (W x D x H in mm)	Countertop version (Portrait): 395 x 395 x 774 Floorstanding version (Portrait): 500 x 500 x 1546 Countertop version (Landscape): 540 x 395 x 588 Floorstanding version (Landscape): 540 x 500 x 1362
Weight (N. W. in kg)	Countertop version: 22.6 Floorstanding version: 34.8

Environmental
Operating Condition	0°C - 40°C, 20%RH - 90%RH
Storage Condition	-20°C - 70°C, 10%RH - 90%RH

Standard Components
Status Indicator	-
Proximity Sensor	1. Range from 45cm ~ 80cm (for dark color object) 2. Range from 45cm ~ 150cm (for light color object)
Camera	1MP wide angle camera
Printer	3" thermal printer w/auto cutter, 200 mm/sec (max.)

Optional Components
Status Indicator	RGB Color LED Indicator (for portrait mode only)
WiFi	USB dongle (cannot coexist with 4G/LTE)
Scanner	2D barcode scanner
EMV Payment Device Bracket Support*	Custom bracket support for various EMV payment devices (Posiflex does not sell the EMV payment devices, but can provide bracket support with an additional charge)
MSR	N/A
Fingerprint Sensor	Optical type
NFC/RFID Reader	Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols - tag read/write (ISO/IEC-18092)
4G / LTE Communication	Support selected bands & countries with full SIM slot (mini-PCIe module) by request
PowerGuard	N/A
Optional Items for Pedestal PT-200BC	N/A
Optional Item for Pedestal PT-300	N/A
Default Items for Pedestal PT-500	N/A
